Phone Numbers:
If you want to use your existing (non-Echo) phone numbers and if they are able to be ported over into Echo, talk to us about the steps involved to do that.
Local, Mobile, and Toll-free numbers are available for purchase within Echo’s admin interface (Admin>Phone Numbers) and allow you to interact via voice and SMS.
Purchasing a local phone number for some countries is not available through Echo because of special circumstances within Twilio. Please contact us if you are wanting to purchase a non-US phone number and there isn’t one listed in Echo.
Setting Up Your Phone Number in Echo
Once you've purchased a phone number in Echo, there are a few things you will want to do to further set that number up for your ministry use. You may want to give you number a "friendly name", something that will be easy for your Echo Users to recognize when a call comes in. You will want to determine and set up a call flow and determine if you want to record your calls. If you plan to use your phone number for SMS, you will want to fill out the brand and campaign information. Lastly, you will want to add the number to the appropriate permission set. We will get into the details of each of those below.
Creating a "friendly name"

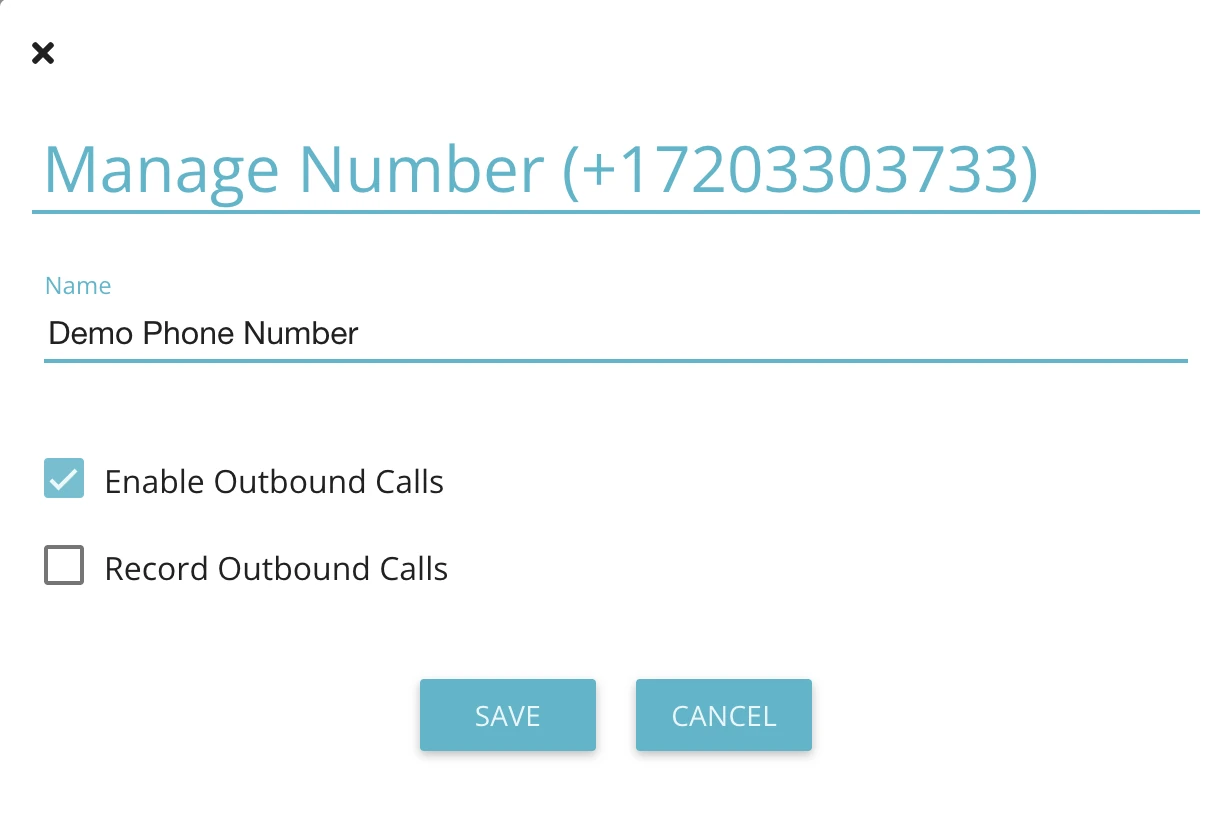

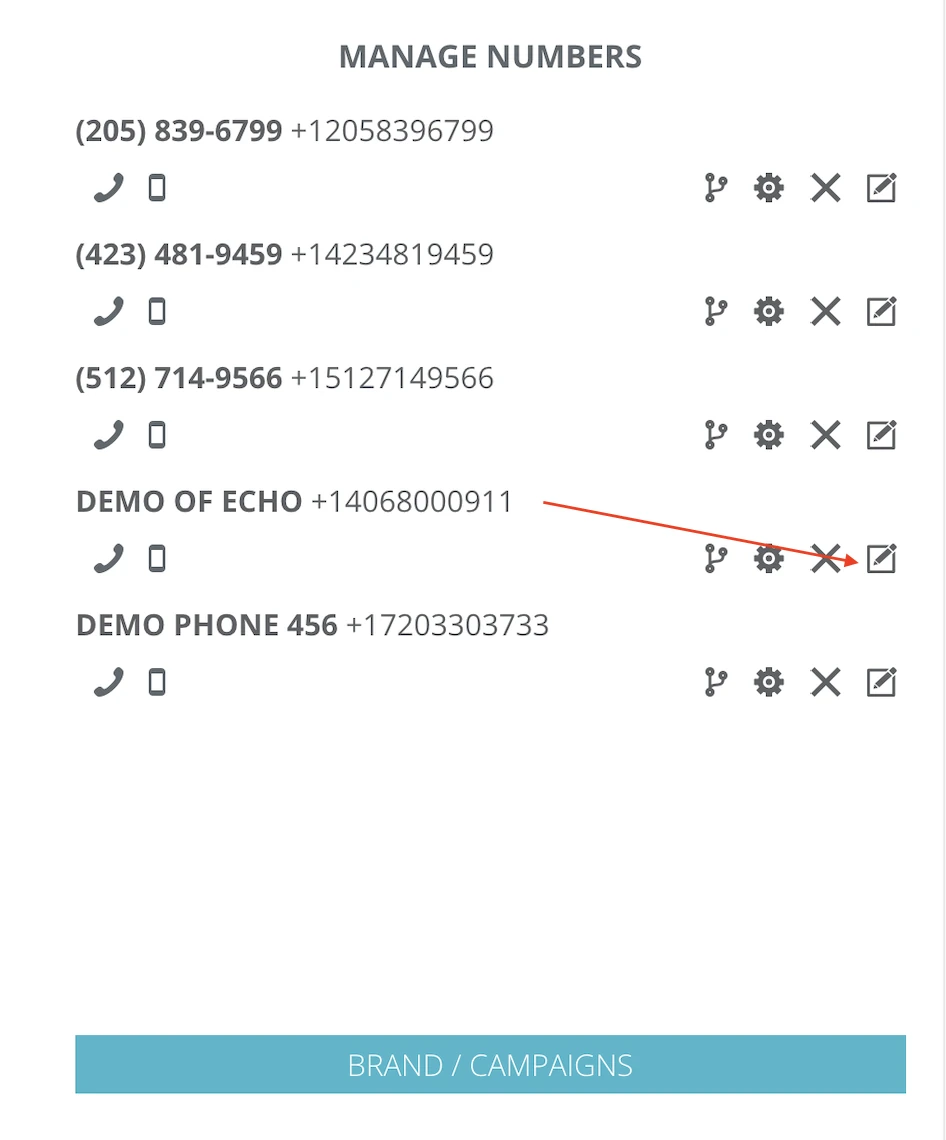

From the Admin-Phone Numbers area of Echo, find the number you want to work with and click Edit on its row.

Under "Name" type in the name you want your Echo User's to see when a call comes in. This name should help clarify to the user where this call is coming from.
From this area, you can also select if you want to allow use of this number for outbound calling (when selected, it will show up in the list to the Echo User of phone numbers that can be used to call someone from Echo).
You can also choose to select Record Outbound Calls. If this option is used, make sure you notify the person on the other end of the line that the call is being recorded.

Click save to save your selections and close the box.
Managing the Call Flow
The call flow is a simple way for you to manage what happens when the seeker dials your phone number. What messages do they hear? When does it show up in the queue in the Inbox for you to be able to answer it, and what happens if no one answers it?

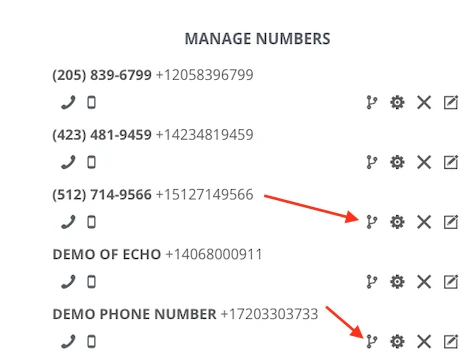

After you log into Echo, go to Admin - Phone Numbers and find the area where you can manage the phone number. You will see an icon that looks like a network symbol (three nodes connected with lines). Click on this to open the call flow area.

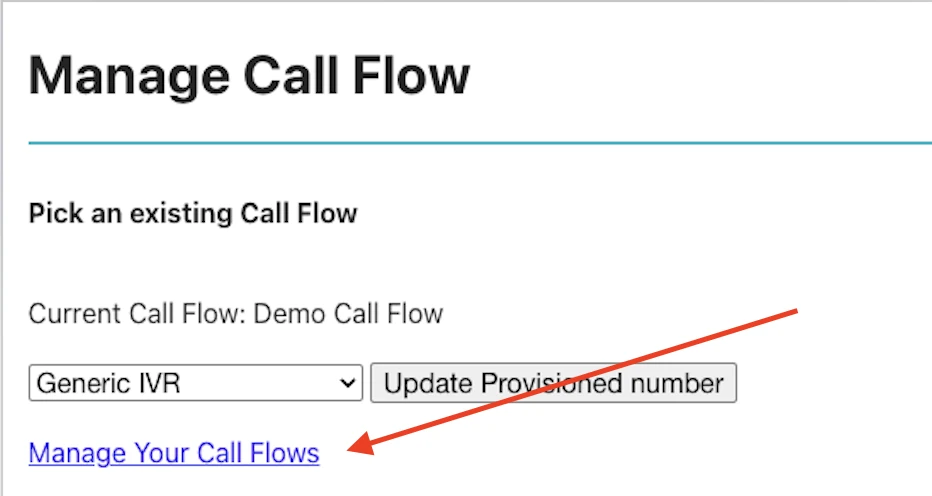

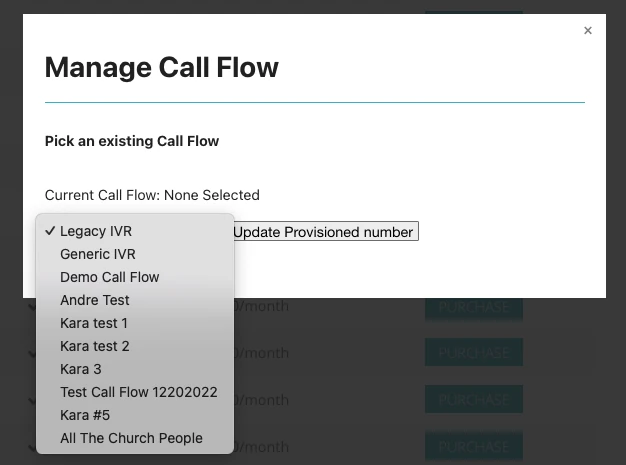

You're going to see legacy IVR and generic IVR, Legacy IVR is going to show up for those users that have been using Echo before this feature has been released. Generic IVR is going to be the IVR that just says thank you for calling "Echo Global", Please wait while we try to get someone to answer your call. Probably neither of these is what you want to use moving forward, and instead, what you want to do is manage your call flows.

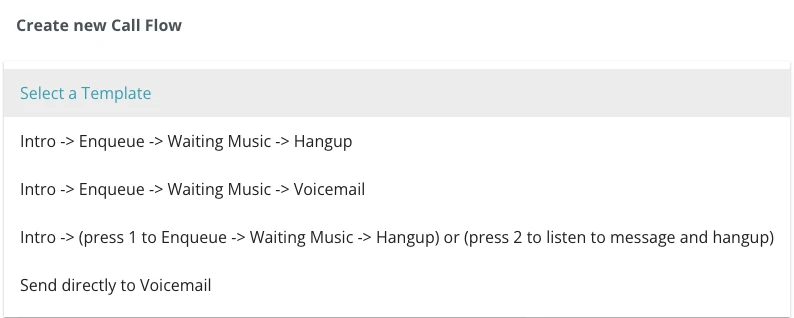

Now you want to create a call flow. To do this, first select the template you want for your call flow. There are 4 options:
- Play an intro audio and then enter an in queue status, which will play a waiting message (often that's music) to the caller while waiting for someone to answer the call, and then it will hang up if no one answers.
- The second one is very similar to the first, except it goes to a voicemail instead of just hanging up.
- The third one allows the caller to press 1 to go into a waiting mode for someone to answer, and if no one answers, they can hang up or press two to listen to a message and hang up. We've seen this primarily used with ministries that maybe want to offer to a much smaller segment of their population that's calling in that speaks a different language, a way to press two and listen to that message in French, for example. And at the end, it would play the gospel message and then hang up, because there's nothing to do.
- The 4th option is to send calls directly to a voicemail message without trying to connect to a person.

Once you've determine the template you want to use, you will want to upload the audio clips you will use in that call flow template.
You will need to create the audio files outside of Echo and save to your computer so that you can upload the file into Echo. (MP3 is the best format).
Keep length in mind as you create your audio files. For example:
- The Intro Audio will play before the call goes into the queue process, so you will want this very short, only the most important info a caller might need to know before connecting with your team (example: "You've called _____ ministry. Call is being recorded for quality assurance.") Consider making this less than a minute long.
- The Waiting Message will play while the call is connecting, which can take possibly up to a few minutes. You will want to make it long enough to give your team time to connect with the caller. We do have a looping option, so if you create your waiting message in a way that it can be repeated, you can make it shorter and then add looping to extend the time.
- If you use a voicemail option, your voicemail audio should provide instruction for what you would like them to leave in a voicemail.
You should record separate audio files for each part of the flow. Name each file something that will help you know which audio is for which part of the process.

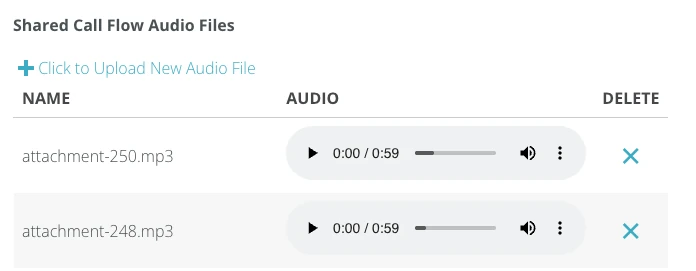

To upload your audio files, scroll down to the bottom of your call flow page and click on +Click to Upload New Audio File. These uploaded files will fill in below this area.


Now that you have your audio files uploaded to Echo, you're ready to finish creating your call flow template.
Give your call flow a name. If you end up having more than one phone number and you want a different call flow for each, this name will help you determine which call flow you want to use for which number.
Next, determine if you want to enable call recording. If you do enable call recording, make sure that you are following local regulations and rules to laws, to make sure that you've announced, if needed, that you are recording the call.

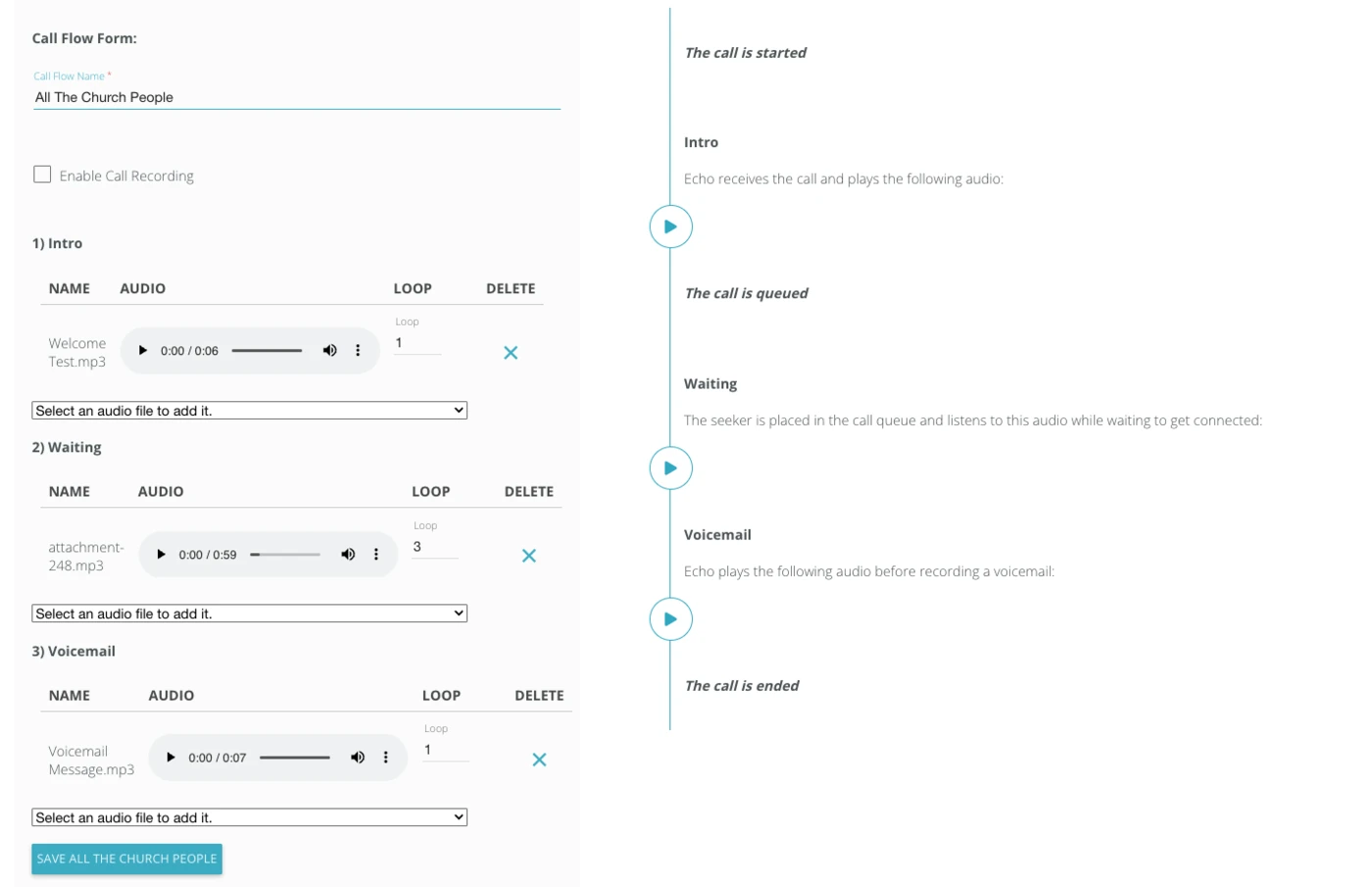

Now you can begin adding the proper audio file to each part of your template. Use the drop down to select the audio file you want to select for each part of your call flow. Once added, you can play the audio file to see what it sounds like, and you can determine how many times you want the audio to loop (if at all).
Recommendation: Don't ever loop the into audio. If you do, it will delay the call from moving into the next part of processing where it can actually get into the queue for someone to pick up. For the waiting message, if your audio is under 1.5 minutes, consider looping it to give the call time to process through to a person. If your waiting message is 3 minutes or more, you may not want to loop it (but it is up to you). You probably don't want to loop a voicemail audio.
You can also delete the audio file from the template here if you've added the wrong one, or want to change it out for a different one.
Now that you've set up your call flow, you can see to the right what the flow will be like for the caller. If everything looks good to you, click on the Save button at the bottom of your template.

Once the template is saved, you will see it as an available option on the first call flow selection screen. Click back to Phone Numbers in Admin. Find your phone number in the list, click on the call flow icon, and now you can select your newly created template for the phone number and then click on "update provisioned number" to save that call flow with that number.

Fill out the Brand and Campaign Information
You only need to set up your brand and campaign information one time. Once approved, the information will automatically be applied to all of your phone numbers.
To submit your brand information, click on Branding along the top of the Admin-Phone Numbers area. For the instructions on the form and then submit. If it fails the first time or if you have questions, please reach out the Echo Support support@echoglobal.org. Your brand information has to be in approved status before you can then fill out your campaign information.
Toll-free numbers do not use a brand or campaign. A toll-free number that will send texts needs a toll-free verification instead, filed from the Toll-Free tab in Admin-Phone Numbers.
Add Phone Number to a Permission Set

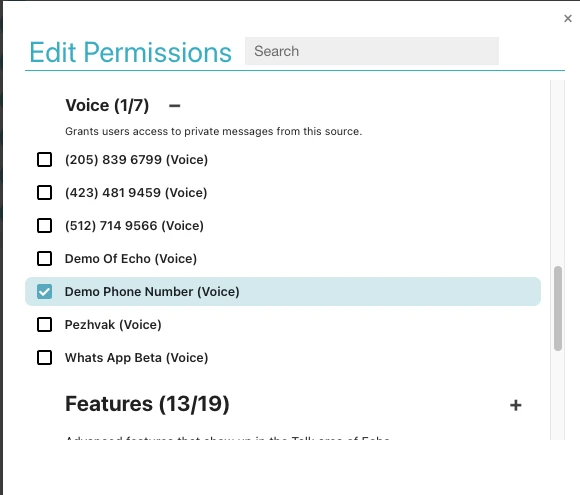

When you are ready to start taking calls from your phone number, remember to do to permission set, and select the voice source for your phone number to add it to the permission set. This is what give your users permission to see/claim/respond incoming phone calls. See below for other permissions options for voice calls.

Setting up Voice Permissions:
There are different permissions for certain voice functionality within Echo. This allows you to have different permission sets for different groups of people. We will talk through each permission set in Echo that is specific to the voice calling functionality.
For a full list of permission options and definitions, you can go to the Echo Permissions Article

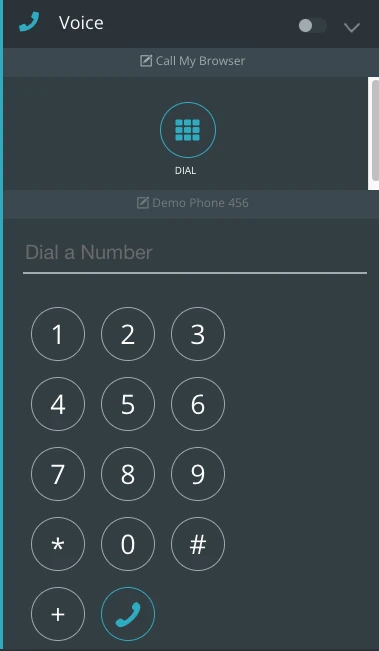

Dialer - A dialer will be added to the voice call menu so that the user may dial an outbound phone number.

Hide Phone Status Toggle - This hides the toggle that allows Echo users to mark themselves as unavailable for inbound voice calls.

Call Based Dispositions - Allows an Echo user to select a call outcome via a dial pad based IVR instead of the Echo app.
Include Missed Calls in Inbox - Shows missed phone calls as new conversations in the Echo Inbox.
Outbound Calling Through Echo Phones - When enabled, if a cell-phone-only Echo user is connected, they can call a phone number back and it will show as coming from the phone number provisioned in Echo so that it masks the Echo user's personal cell phone number.
Voice Queue - When Echo user has access to voice/phone, this enables the voice queue (pending callers and available users) display in the main talk area.
Making sure fewer calls are missed
A missed call is a seeker who reached out and got nothing. Having more responders helps, but many missed calls come from something smaller: Echo could not find anyone available when the phone rang, or the caller gave up before Echo reached a second person. This is the admin's checklist for both. The responder's side, returning a call once it has been missed, is Calling Back a Missed Caller.
How Echo rings your team
- One responder at a time, never everyone at once. Echo rings the responder who has been available longest, among those whose permission set includes the number the seeker called.
- If they do not answer, Echo tries the next one. The caller hears your waiting audio meanwhile.
- Only available responders are rung. A responder is available when the switch beside Voice is on, whether they turned it on or the scheduler did, and they are not already on a call.
- The caller waits as long as your waiting audio lasts. When it runs out, the call ends unanswered, or goes to voicemail if your call flow has one.
So there are two things to work on: how many responders are available when calls come in, and how long callers wait.
Keep responders available

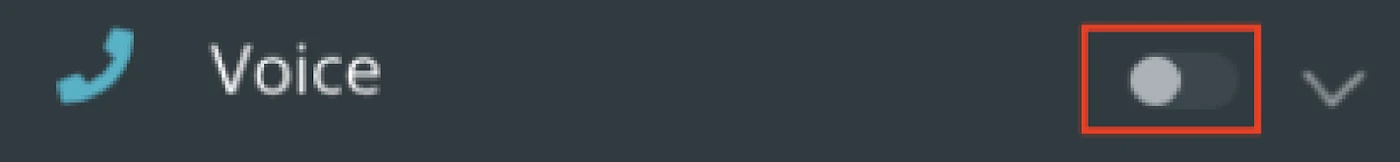

The switch beside Voice is how Echo knows whether to ring someone. Echo also switches it off by itself, and this is the most common way a team shrinks during a shift without anybody noticing.
| What happens | What Echo does |
|---|---|
| A responder answers a call and it ends normally | Makes them available again about five seconds later. |
| A responder taking calls in the browser does not answer within 30 seconds, or clicks Decline | Switches them to unavailable. |
| A responder taking calls on a phone does not answer, or does not press 1 to accept | Switches them to unavailable. |
| A responder accepts a call just after the caller has hung up | Switches the responder to unavailable. |
A responder switched off this way stays off until somebody switches them back on. Tell your team: after a missed or declined call, check the Voice switch.
If a permission set has Hide Phone Status Toggle, those responders cannot switch themselves back on. Only the scheduler or an admin can.
Scheduled responders
Responders with Auto-available Call Scheduler are switched on for the hours they are scheduled for calls, and Echo checks the schedule again about every ten minutes, so a scheduled responder who was switched off comes back on at the next check.
A scheduled responder on a phone who misses calls sits out for a while before Echo rings them again: one minute after the first unanswered call, two after the second, then four, six, eight and so on, counting unanswered calls in a row over the last two hours. Answering a call resets it.
Bring someone back yourself
In Reports, open Calls and click Live Dashboard. The Call Queue card lists who Echo can ring right now and, under Deprioritized, who is sitting out. Click the thumbs-up beside a name to put them back. The Calls Live Dashboard has the rest of that page.
Give every caller somewhere to go
The call flow decides what happens when nobody answers. "Managing the Call Flow" above shows how to build one; this is what each template does when the waiting audio runs out:
| Template | When nobody answers |
|---|---|
| Intro -> Enqueue -> Waiting Music -> Hangup | The call ends. |
| Intro -> Enqueue -> Waiting Music -> Voicemail | The caller can leave a voicemail. |
| Intro -> (press 1 to Enqueue -> Waiting Music -> Hangup) or (press 2 to listen to message and hangup) | The call ends. |
| Send directly to Voicemail | Nobody is rung. The caller goes straight to voicemail, which suits a number outside your hours. |
- Use a template that ends in voicemail, so no caller reaches silence.
- Make the waiting audio long enough for Echo to try more than one responder. A responder in the browser has up to 30 seconds to answer, so a short waiting message can end the call before Echo reaches a second person.
- Tell callers a call back may come. The person who answers a call back may not be the person who called. Calling Back a Missed Caller has wording for your greeting.
Voicemails play inside the call's conversation, for any responder who opens it. Echo does not transcribe them. Call Flows covers recordings and templates in full.
Put missed calls in front of someone
A missed call does not reach anybody unless you send it somewhere. Add these to the permission sets of the responders who should follow up:
| Setting | What it does |
|---|---|
| Beta: Include Missed Calls in Inbox | Missed calls from the last 30 days show in the Inbox, where a responder can claim one. |
| Call Back Button | Puts the Call Back button on a missed or ended call. It does not show the caller's full number: without the setting below, the number stays anonymized. |
| Show Full Phone Number | Shows these responders every caller's full number instead of an anonymized one, so choose who gets it. Call Back does not need it. |
| Dialer | Lets a responder see and change which ministry number a call back comes from. |
Then, under Phone Numbers, click Edit on each number seekers call and switch on Enable Outbound Calls. Call Back only appears on calls to a number that can call out.
If Record Outbound Calls is also on for a number, call backs placed from it are recorded from the start. Make sure responders know to say so.
See when calls are missed
| Where | What it tells you |
|---|---|
| Reports → Heatmaps → Missed | The hours when calls and conversations go unanswered. Missed Conversations Heatmap |
| Reports → Calls → Live Dashboard | Who can be rung right now, who is sitting out, and who is waiting. The Calls Live Dashboard |
| Reports → Calls → User Performance | What each responder did with the calls Echo offered them. The Calls User Performance Report |
| Admin menu → Reports → Missed Calls | Missed calls against declined ones, by hour, and how long callers waited before hanging up. |
Read the missed hours beside your schedule. If the gap is every night between eleven and one, more daytime cover will not close it.
Echo can also tell you as it happens. The Scheduled User Missing Calls alert, under Alerts in the admin menu, fires when a scheduled responder has been offered four or more calls in two hours and accepted none.
What the terms mean
| Term | What it means |
|---|---|
| Available | Waiting in Echo's line of responders to ring. Only available responders are rung. |
| Voice switch | The switch beside Voice on a responder's screen. On means available. |
| Missed call | An incoming call that ended before any responder was connected. |
| Declined | A call a responder was offered and did not take, by clicking Decline, letting it ring out, or not pressing 1. |
| Deprioritized | A scheduled responder sitting out for a few minutes after unanswered calls. |
| Waiting audio | What a caller hears while Echo looks for a responder. Its length is how long they wait. |
| Call flow | What a caller hears when they ring your number, and what happens if nobody answers. |
